Ice maker not working: arm, water, filter and cold before any parts

When a Viking ice maker is not working, check five things in this order: the signal arm is down, the water valve feeding the unit is open and its line is not kinked or dripping, the water filter is not overdue, the freezer is genuinely cold, and no clump of ice is jamming the mold or the bin. Those checks need a flashlight, a thermometer and about twenty minutes. If all five pass and the bin is still empty a day later, the fault sits in the water valve, the ice maker module or the cooling, and that is the point to book a technician.

Is the ice maker switched on at all?

The wire signal arm, which Viking also calls the bale arm, is the on switch. Down means make ice; raised means stop. On a 5 Series built-in the arm has to be lifted until it clicks before Sabbath mode can start, so a household that keeps the Sabbath, or a guest exploring the buttons, may have left it up. If SAB is showing on the display, leave Sabbath mode first and then lower the arm.

Integrated columns have a different trap called showroom mode. Holding VAC and ALARM together for 3 seconds turns it on or off, and while it is active the lights work but the controls, temperature regulation included, do nothing.

Also look at the calendar. A new installation needs a day or two before the first cubes fall, as the questions below spell out. After a long absence, dump the first 5 Series drawer made once the machine wakes up, which matters in a beach house that stays shut for part of the year.

Water: valve, line and pressure

No water, no ice. Find the shut-off valve for the refrigerator, often under the sink or behind a panel beside the unit, and make sure it is fully open. Then check for drips or a damp floor near the toe-kick. A built-in that was rolled out and pushed back, say after new flooring, can pinch its supply line flat. Moving one safely is a job in itself, as our page on built-in access and clearance explains.

Pressure matters too. Viking asks for a 1/4-inch copper line at 20 to 120 psi on its FDREIC integrated all-refrigerators. A well pump that cycles low or an under-sink reverse-osmosis system can fall short, and the mold then fills slowly or not at all.

The filter nobody remembers changing

A clogged cartridge starves the fill long before the dispenser stops completely. Intervals depend on the model:

• Older built-ins covered by manual F20413, such as VCSB423 and VCBB363: replace every nine months or after 750 gallons, whichever arrives first, then run the dispenser for three minutes.
• RVFFR336 French-door: cartridge RWFRVFFR every 6 months.
• FDREIC, FDFZIC and FDBMIC7360: rated for up to 3,000 litres (792.6 gal) and a maximum of 12 months; the FDREIC uses RWFIC.

A new cartridge holds air, so expect sputtering and a slow first fill.

The freezer has to be cold enough

An ice maker will not begin a cycle until its mold is well below freezing, and after a power cut Viking says reaching that point can take overnight. Put a thermometer in the freezer; about 0°F is the usual goal. If the freezer itself is warm, the missing ice is a symptom rather than the fault: look at condenser dust, a blocked toe-kick grille, a tired fan or a frosted evaporator. Salt air near the beaches also eats condenser fins faster than it does inland.

Jams, clumps and a bin that only looks full

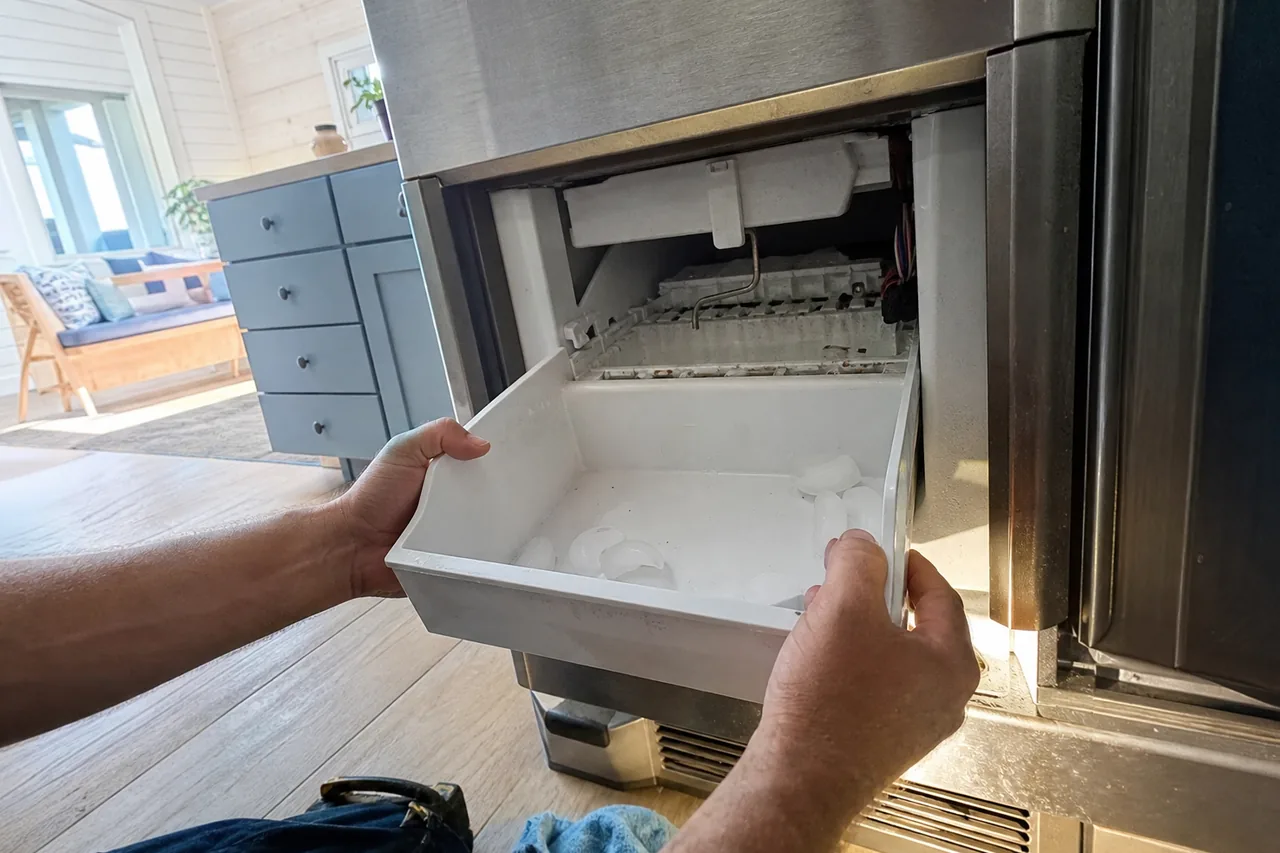

Slide the bin out. Cubes that thawed and refroze into one block can prop the arm up or bind the auger, and one cube wedged in the ejector blocks the next harvest. Break up the block, dry the bin, and push it fully home.

Undercounter clear-ice machines

The FGIM5151 is a separate machine that wants its ice-making system cleaned once a year at minimum, twice if you can manage it. Half a year of running switches on the Time to Clean light, and only a completed cleaning turns it off. Scale left in place slows output well before it stops. Coverage differs on these machines as well; see Viking warranty, and ours.

When to call, and what it usually costs

Book a visit when every check above passes and the bin is still empty after a full day, when the inlet valve buzzes but nothing fills, when the mold fills but never releases, or when water shows under the unit. The diagnostic is $80. If the cause is a refrigeration fan or the defrost system, the typical range is $240–$640, while compressor or sealed-system work typically runs $980–$2,470; the firm figure follows the diagnosis. Have the serial number ready, and see our Viking refrigerator repair page for what a visit involves.
